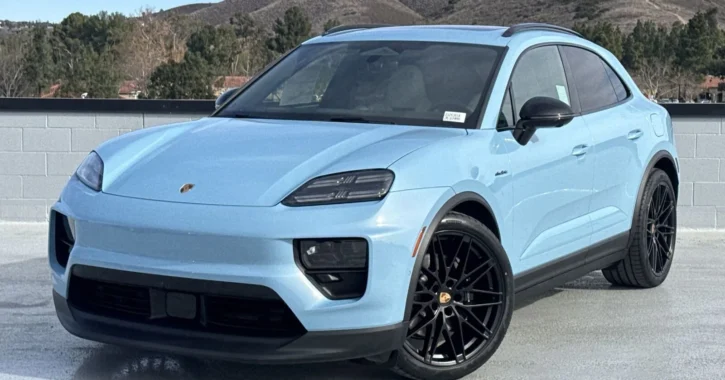

Porsche Macan 4 EV charger installation in Chicago starts with the charger built into the car. A 2026 Macan 4 accepts about 11 kW on a Level 2 circuit. At 240 volts that is about 46 amps continuous. A continuous EV load is sized at 125 percent, so this car belongs on a 60-amp breaker.
The same visit covers EV charger installation in Chicago for other Level 2 cars. The Macan 4 has its own onboard rate, and the breaker follows that rate.
The circuit a Macan 4 can use
Porsche lists DC fast charging up to 270 kW, and a 10 to 80 percent charge in 21 minutes when the station, the voltage, and the battery temperature all line up. That stop is a public CCS charger. The overnight charge uses the 11 kW onboard module. A 2026 US charging sheet for the Macan Electric puts a full Level 2 session at about 11 hours.
A 40-amp breaker supplies about 32 amps continuous, near 7.7 kW. The Macan 4 module draws about 46 amps. At 125 percent that load is about 57 amps, so the breaker is 60 amps.
Why a dryer outlet falls short
A NEMA 14-50 dryer outlet is a 50-amp receptacle. On a continuous load it stops at 40 amps, about 9.6 kW. That is short of the Macan 4 module. Sharing the outlet with a dryer puts the car and the dryer on one circuit. We hardwire a Level 2 charger on its own 60-amp breaker so the car can take the full AC rate.
Copper for a 60-amp breaker is typically 6 AWG when the breaker and the charger lugs are rated 75 degrees C. Aluminum is used only where those lugs are listed for aluminum. A long run to a detached garage can need a larger conductor. We measure the path before we pull cable.
The plug at home
The charging port on the Macan Electric is a CCS inlet. The upper pins of that inlet take a J1772 plug, which is what a home charger uses. Porsche NACS adapter is for DC fast chargers on the road, including Tesla Superchargers. Porsche says that adapter is not for Level 1 or Level 2 AC charging, and it is not for a home charger with a NACS plug. We install a J1772 charger. The NACS adapter stays in the car for highway DC stops.
Some Porsche notes list a higher onboard AC charger on other trims and in other markets. The Macan 4 rate published for the US model is 11 kW. If the window sticker or the charge screen in the car shows a different module, we size the breaker from that module before any wire is pulled.
Panel, permit, and where the Macan parks
Chicago houses and two-flats often run the range, the dryer, and the air conditioner on a panel with little spare room. A load near 46 amps sits on the service for hours. We start with a panel check before we commit to a 60-amp breaker. If the panel cannot take the load, the work becomes an electrical service upgrade, or a load-management charger that pauses the car when the range or the air conditioner is running.
A Macan is a wide SUV. The cord has to reach the port without crossing the walkway. In a garage we set the charger on the port side of the stall. In a condo we confirm the parking space, the association rules, and whether the panel belongs to the unit or the building before a permit is opened. Chicago requires a permit for a new 240-volt circuit. We pull that permit, mount the charger, label the breaker, and test a charge on the car.
What we do on the visit
The visit covers the onboard rate, the open breaker spaces, and the path from the panel to the stall. Most of the time is the wire run and the panel work. Electric vehicle charging station installation for this car uses one dedicated circuit, sized to the module in the car. Call (773) 721-1111 to schedule the panel check and the Macan 4 install.
How long does a Macan 4 Level 2 install take?
A short run from the panel to a garage stall is often finished the same day. A condo run, a long feeder, or a panel change takes longer, because the permit and the wire path come first.
What if the panel cannot hold a 60-amp breaker?
We do the panel check before we buy the breaker. When the bus or the service is already full, the choices are an electrical service upgrade or a load-management charger.
Can the Macan charger be installed outdoors?
Yes, when the charger is listed for a wet location and the cord reaches the port without crossing the walk.
Will a Tesla home charger plug into a Macan?
A J1772 Tesla Wall Connector will. A NACS Wall Connector will not. The Porsche NACS adapter is only for DC fast charging. We install a J1772 charger for home.
How do I schedule the install?
Call (773) 721-1111. We confirm the onboard module and the panel before we set a time.
