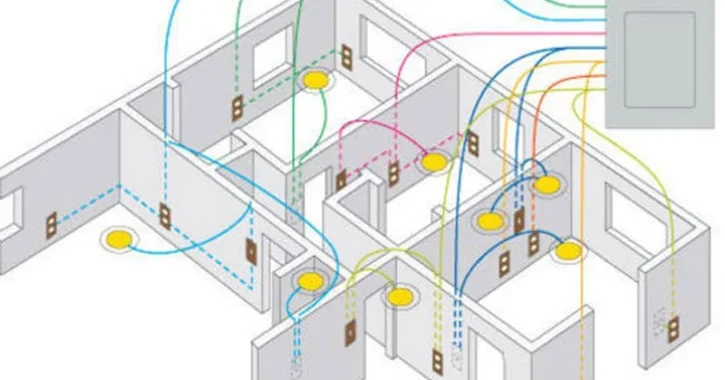

Mapping Your Home’s Circuits

The initial step to avoiding electrical circuit over-burden is to realize which circuits control which gadgets. When you’ve mapped the fundamental circuit design, you can figure the sheltered load rating of each circuit to get a feeling of what number of things you can work on that circuit. For instance, if your kitchen lights diminish when you turn on your toaster stove (an eager for power apparatus), that reveals to you that the toaster and lights are on a similar circuit (despite the fact that they shouldn’t be) and that you’re near maximizing the circuit limit. Mapping the circuits additionally can let you know whether there’s a requirement for new circuits to meet the typical requests of the family unit.

Mapping circuits is basic (if monotonous): Get a notebook and a pencil. Open the way to your home’s administration board (breaker box) and kill one of the breakers with the number 15 or 20 stepped on the finish of the breaker switch. (Try not to mess with the breakers stepped with 30, 40, 50, or higher numbers; these are high-voltage circuits for machines like electric extents, boiling water warmers, and garments dryers, and you’re not connecting standard apparatuses to these circuits.) Note on the cushion where the circuit lies in the board so you can recognize it later.

Next, stroll through the house and attempt every one of the lights, roof fans, and module machines. Record everything that doesn’t have power, and note the room it is in. Additionally, test every outlet with a voltage analyzer or repository analyzer, or even a module light or light, recording all that don’t work. You don’t really need to experience the whole house for each circuit. Furthermore, if your electrical expert was exhaustive, there might be useful marks beside the breakers, demonstrating the circuit regions (“Southeast room,” “Carport lights,” and so on.). In any case, for exact mapping, you should test every zone comprehensively on the grounds that circuits can have crackpot individuals—a microwave on a lobby lighting circuit, for instance.

After you’ve tried the circuit zone, return to the board, turn on the primary breaker, at that point kill the following one in the column, and rehash the test. Rehash the procedure for the majority of the “15” and “20” circuits.
