Your electrical service panel box (breaker box) is the hub that receives utility power and distributes it to lights, outlets, and appliances in a Chicago home. Knowing how the panel works, and when DIY must stop, prevents unsafe resets and delayed repairs. This page explains the box itself: parts, labeling, safe resets, wire matching, and clearance.
High-risk panel brands and replacement urgency belong on our electrical panel safety guide. Upsizing from 100A to 200A during a remodel belongs on our electrical service upgrade page. Use this primer when you need to understand the box before you call.
What the Service Panel Does
The panel is a steel enclosure with a hinged door. Inside, the main breaker or main lugs feed branch breakers. Each branch breaker protects one circuit. When a circuit overloads or faults, the breaker trips to the middle or OFF position to stop current before wiring overheats.
Everything except the utility feed itself can be shut off at the panel. That is why electricians start repair work by identifying the correct breaker and verifying power is dead at the device. In Chicago two-flats and bungalows, the main panel may sit in a basement, utility closet, or porch enclosure with limited working space.
Main Breaker, Branch Breakers, and Subpanels
The main breaker shuts down most of the house at once. Branch breakers protect individual rooms or equipment. A subpanel fed from the main can serve a finished basement, garage, or addition. Confusing subpanels without labels make outages and remodel planning slower and less safe.
Spare slots matter when you add circuits for kitchens, EV charging, or office loads. A full panel may need a reconfiguration, a subpanel, or a service upgrade rather than double-stuffed breakers that ignore wire ampacity.
Labeling: The Feature That Saves Hours Later
Every breaker should identify the rooms or equipment it serves. Unlabeled Chicago bungalow panels force guesswork during outages and remodeled kitchens. After any panel work, update labels so the next service call or your own emergency shutoff is accurate.
Shared two-flats and finished basements often need a written circuit map near the main panel when labels alone are not enough. Clear labeling also helps City or village inspectors and future buyers read the system.

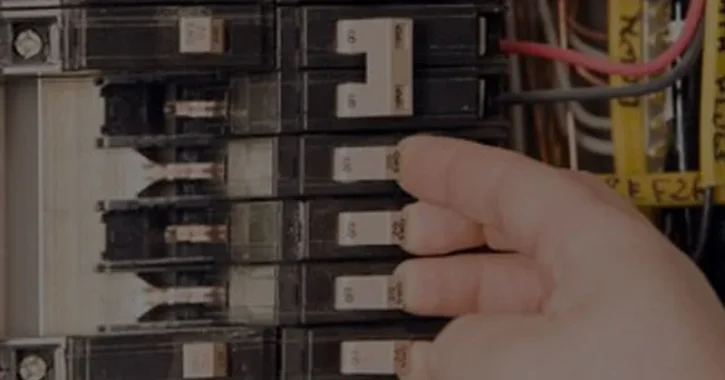

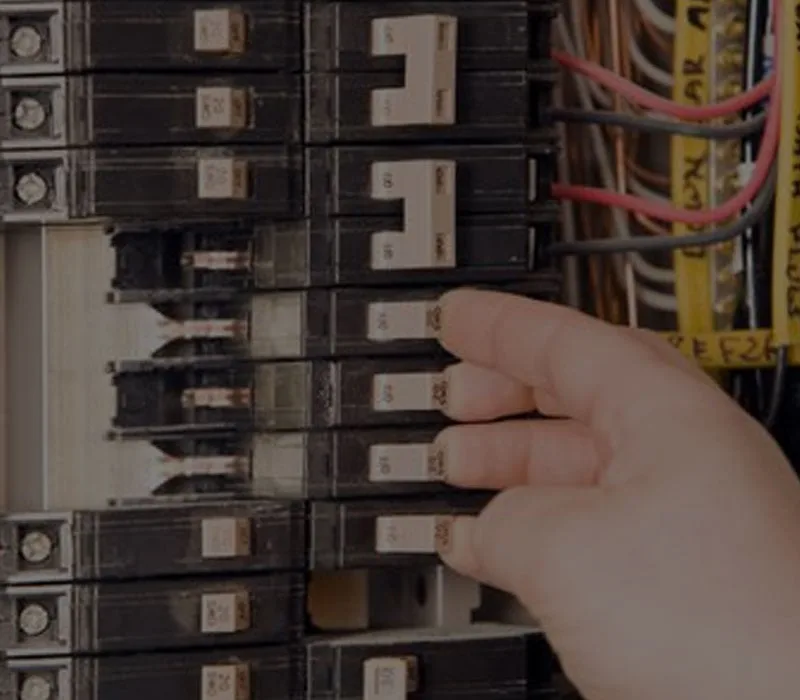

How to Reset a Tripped Breaker Safely
Keep hands dry and stand to the side. Move the lever fully to OFF, then firmly to ON. Do not hold a breaker in the ON position if it will not stay on. That pattern is a fault signal, not a sticky switch.
If the same breaker trips again after one reset, unplug loads on that circuit and call an electrician. Repeated trips can mean overload, short, or a failing breaker. Treating trips as a nuisance is how heat damage starts. More on trip patterns: circuit breakers and fuse boxes.
Wire Size Must Match Breaker Rating
Breakers protect the wire. Breaker amperage must never exceed what the conductor is rated for. Oversized breakers on undersized wire are a classic fire hazard from DIY panel work and unpermitted remodeled kitchens.
If you are adding circuits, the panel may need spare slots, correct breaker types (including AFCI or GFCI where required), and sometimes a service upgrade, not just a new receptacle run. Chronic overload symptoms are covered on our overloaded circuits page.
Aluminum Branch Wiring and Loose Lugs
Aluminum conductors expand and contract with heat more than copper. Loose lugs at the panel create hot spots and arcing. Do not open a live panel to torque connections yourself. A licensed electrician de-energizes equipment and uses correct torque specs and listed devices for aluminum when required.
Warm breakers, buzzing, or a burning smell at the panel are stop-work signals. Cut power if you can do so safely from outside the enclosure, leave the area, and call for service.
Clearance and Access Rules Matter
Keep storage, shelving, and laundry piles away from the panel face. Working space in front of the panel is a safety requirement. Blocked panels delay emergency shutoff and fail inspection during sales and renovations.
In Chicago basements, panels are often tucked near laundry or storage. Clearing the face before a service call speeds diagnosis and keeps the job inspection-ready.
When DIY Stops and Professionals Start
Homeowners can reset a clearly labeled breaker once and note what was running when it tripped. Stop and call a pro for buzzing, burning smells, warm breakers, scorch marks, water intrusion, aluminum wiring, Federal Pacific or Zinsco concerns, or panels that will not hold a reset.
STS Electric inspects, repairs, and replaces service panels across Chicago and Cook County from 939 W North Ave #746. Schedule through licensed residential electrician services or call (773) 721-1111.
FAQ: Electrical Service Panel Box
What is the difference between a service panel and a service upgrade?
The panel is the breaker box that distributes power. A service upgrade changes the ampacity and often the feeder and meter equipment that supply that panel. Upgrade planning lives on the service upgrade guide linked above.
Is it safe to reset a breaker more than once?
Reset once after clearing loads. Repeated resets can damage the breaker and hide a fault that may overheat wiring. Call a licensed electrician if it trips again.
Why does my panel need clear space in front?
Clear working space lets you shut power off quickly in an emergency and lets electricians and inspectors work safely. Blocked panels are a common sale-inspection failure.
When should a Chicago home replace its panel?
Replace when the panel is damaged, unsafe brand or condition, chronically overloaded, or cannot support needed circuits without unsafe workarounds. Brand-specific risks are covered on the panel safety guide.
